Our Products

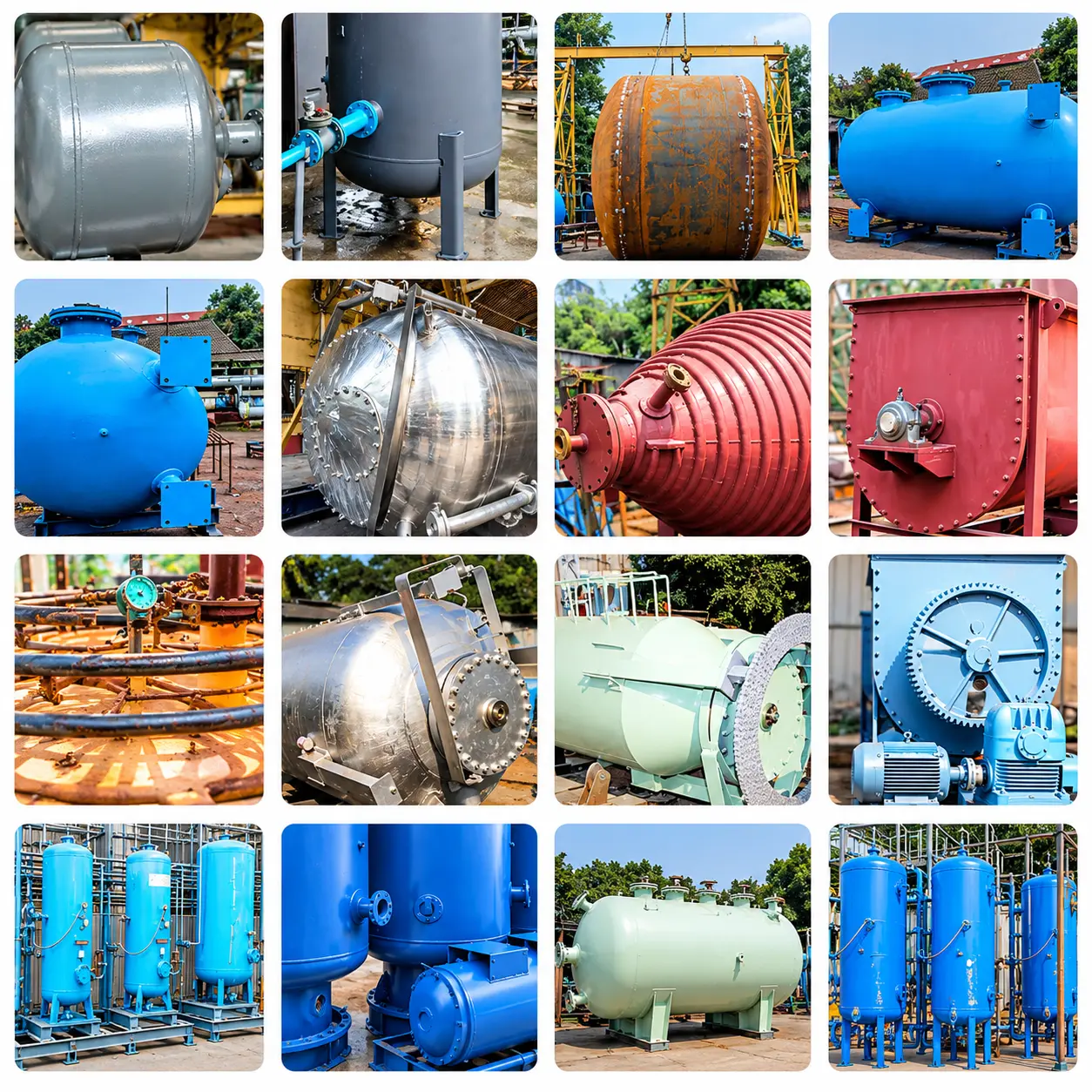

Annapurna Engineering Enterprise is the Manufacturer and Fabricator of Stainless Steel & Mild Steel – Tanks & Vessels, Process Equipment, Heat Exchangers, Material Handling Equipment, Bridge Girders & Bridge Bearings.
Home / Products
Annapurna Engineering Enterprise is the Manufacturer and Fabricator of Stainless Steel & Mild Steel – Tanks & Vessels, Process Equipment, Heat Exchangers, Material Handling Equipment, Bridge Girders & Bridge Bearings.
Our range of air receivers are manufactured using carbon steel (IS 2062, IS 2002, SA 516 etc.) and/or stainless steel (SS 304, 304L, SS 316, 316L).
We have a complete facility to design and manufacture a complete range of Compressed Air Receivers & Compressed Air Gas Storage Tanks having volumetric capacity range from 500 Ltrs to 30,000 Ltrs.
Known for durability, less maintenance, easy operation and corrosion resistance, our range is in adherence with defined industry standards.

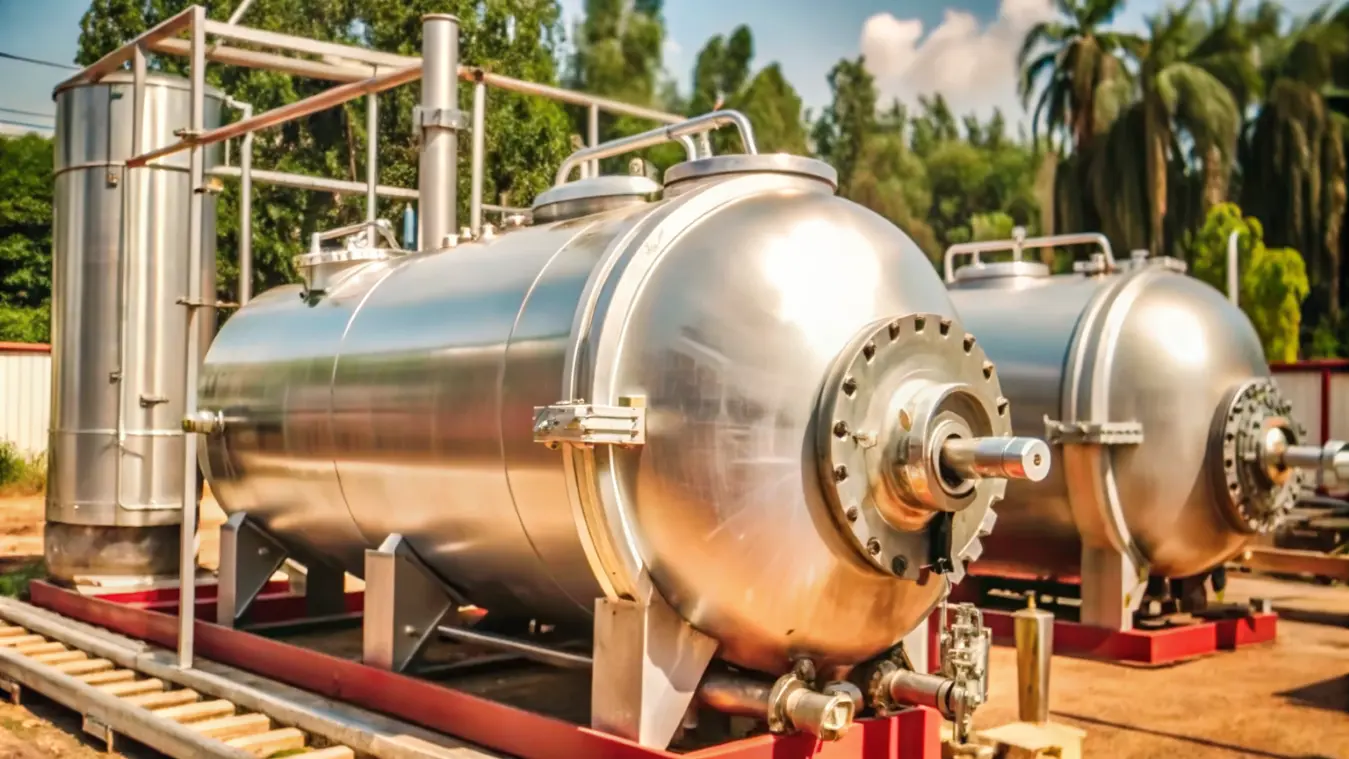

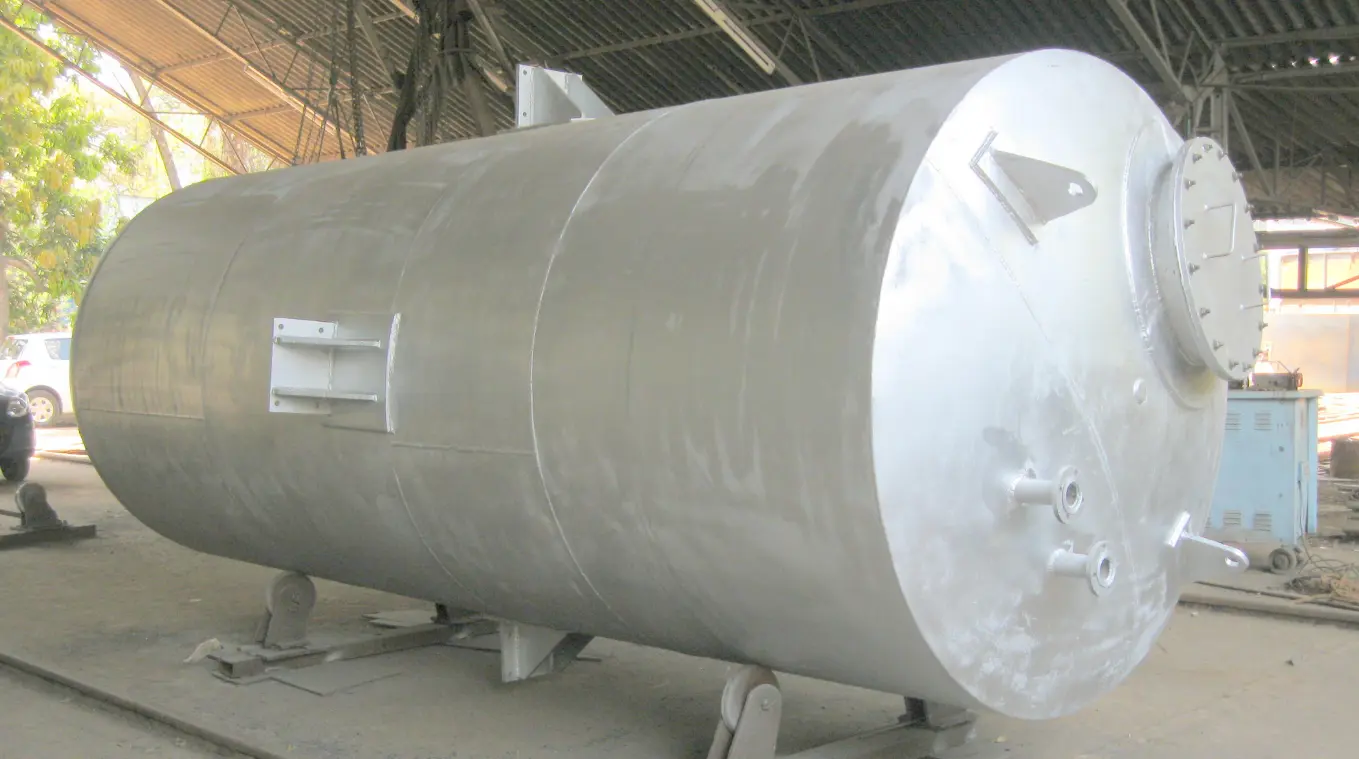

Our range of ss tanks are manufactured using a range of stainless steel grades like SS 304, 304L, SS 316, and 316L with the different options of jacketing, insulation and internal coil for heating or cooling.
Built with meticulous control and craftsmanship in our shop, you can trust that your tank is fabricated as per standard and made to last.
Our range of pressure vessels are manufactured using Carbon Steel (IS 2002, SA 515/516 etc.) and/or Stainless Steel (SS 304, 304L, SS 316, 316L).
We have a complete facility to design and manufacture a wide range of pressure vessels having a volumetric capacity range from 1000 Ltrs to 30,000 Ltrs.
Known for durability, less maintenance, easy operation and corrosion resistance, our range is in adherence with defined industry standards.
Our range of heat exchangers are manufactured using carbon steel and/or stainless steel (SS 304, 304L, SS 316, 316L).
We have a complete facility to design (Thermal & Mechanical) and manufacture a complete range of Shell and Tube Heat Exchangers for cooling, condensing and heating applications.
As a leading industrial chemical reactor manufacturer, we offer carbon steel and/or stainless steel (SS 304, 304L, SS 316, 316L) reactor vessels with the options of jacketing and internal coil for heating or cooling and with or without an agitator.
Known for durability, less maintenance, easy operation and corrosion resistance, our range is in adherence with defined industry standards.
Generally made up of three main components – a shaft with impellers, a mechanical seal, and a motor with a gearbox option. They are fitted on a stand with manual or pneumatic or hydraulic lifting and lowering systems.
Let's discuss
Have a Questions? Drop your enquiry Reach out to Us Have a Questions? Drop your enquiry Reach out to Us
Ample space for your big projects!
15,000+ sq ft area
7,000 sq ft covered and floored shed
8,000 sq ft open area
Gated compound with boundary wall
24-hour security and surveillance
Manufacturing unit
- 2, Rabindranath Tagore Road, Dakshineswar Kolkata 700076, West Bengal, India
- 400 m from the nearest metro and railway station
- 7 km from the Kolkata Airport
Reach out to Us
If you have anything to talk about/enquire/need support, let us know. We will go through your requests and respond within 2 business days.
Speak to us or drop us a WhatsApp message
Brands who have trusted us over the years
Aefab – QUICK FACTS
Some more answers to your questions – FAQ
A compressed air receiver tank receives and stores compressed air after it exits the air compressor.
This gives you a reserve of compressed air that you can draw on without running your air compressor.
The main purpose of this is to act as temporary storage to accommodate the peaks of demand from your system and to optimize the running efficiency of your plant.
Air Receiver tanks play a vital role in every compressed air system. Air receivers are used to store the compressed air and maintain the air pressure as per the application of the process area, it also creates a buffer and storage between the compressor and consumption systems.
Aefab Annapurna Engineering is a leading manufacturer and fabricator of stainless steel tanks, stainless steel vessels, shell and tube heat exchangers, agitator mixers, industrial chemical reactors, vertical and horizontal pressure vessels, bridge girders and steel bridge bearings.
Higher pressure in your air receiver would mean more air for your process. Now the question is how much pressure should we plan for?
Actually, the pressure of your tank should be related to the output pressure of your compressor.
Most standard fixed speed and variable speed drive compressors can deliver compressed air at up to 175 PSIG (12bar), however, the majority of industrial facilities operate between 100-125 PSIG (7-8 bar). Depending on your facility’s needs, the air receiver’s maximum pressure should be sized accordingly.
For example, if your fixed speed compressor is rated to deliver a maximum of 125 psig (8 bar), the air receiver should be rated at a minimum of 150 psig (10 bar).
Most variable speed drive (VSD) air compressors are rated up to 175 psig (12bar), therefore, a 200 (14 bar) psig air receiver would be more suitable for this type of compressed air system.
Each air receiver should be equipped with a pressure relief valve, which is designed to release pressure from the tank in case the tank reaches its maximum allowable pressure inside the vessel.
It is important to remember that higher pressure does not equal more flow (CFM or l/s). It is very important to understand minimum and maximum pressure settings for the machines that utilize compressed air and if possible use pressure regulators out of the air receiver and or at the point of use.
A good rule of thumb to remember is that each 2 psig is equal to 1% of energy being used (1 bar is equal to 7% of energy), which means that we should keep our system pressure according to the facility’s needs, in turn resulting in further energy savings.
As a leading Air Receiver Tank Manufacturer in India with a manufacturing base in Kolkata, we provide a solution that is just right for you.
Share your comprehensive requirements when thinking through the options that are important to you or required for your application.
We manufacture different kinds of air compressor tanks, Air compressor storage tanks, Air compressor receiver tanks, Compressed Air Receiver Tank, Air vessel tanks, Air Reservoir Tank, stainless steel air receivers, stainless steel air receiver tank, air receiver tank, air receiver vessel, Compressor air receiver tank, Air vessel, Vertical air receiver, Horizontal air receiver any many related items.
Aefab Annapurna Engineering production personnel are accomplished craftsmen and experienced fabricators. Their abilities include skills such as:
- Operation of hand-held welding and grinding equipment
- The utilisation of a variety of measurement and testing devices
- Availability of Equipment such as
- Shear and brake press
- Welding – SMAW, MIG and TIG
- Grinders and Polishers
- Plasma cutting

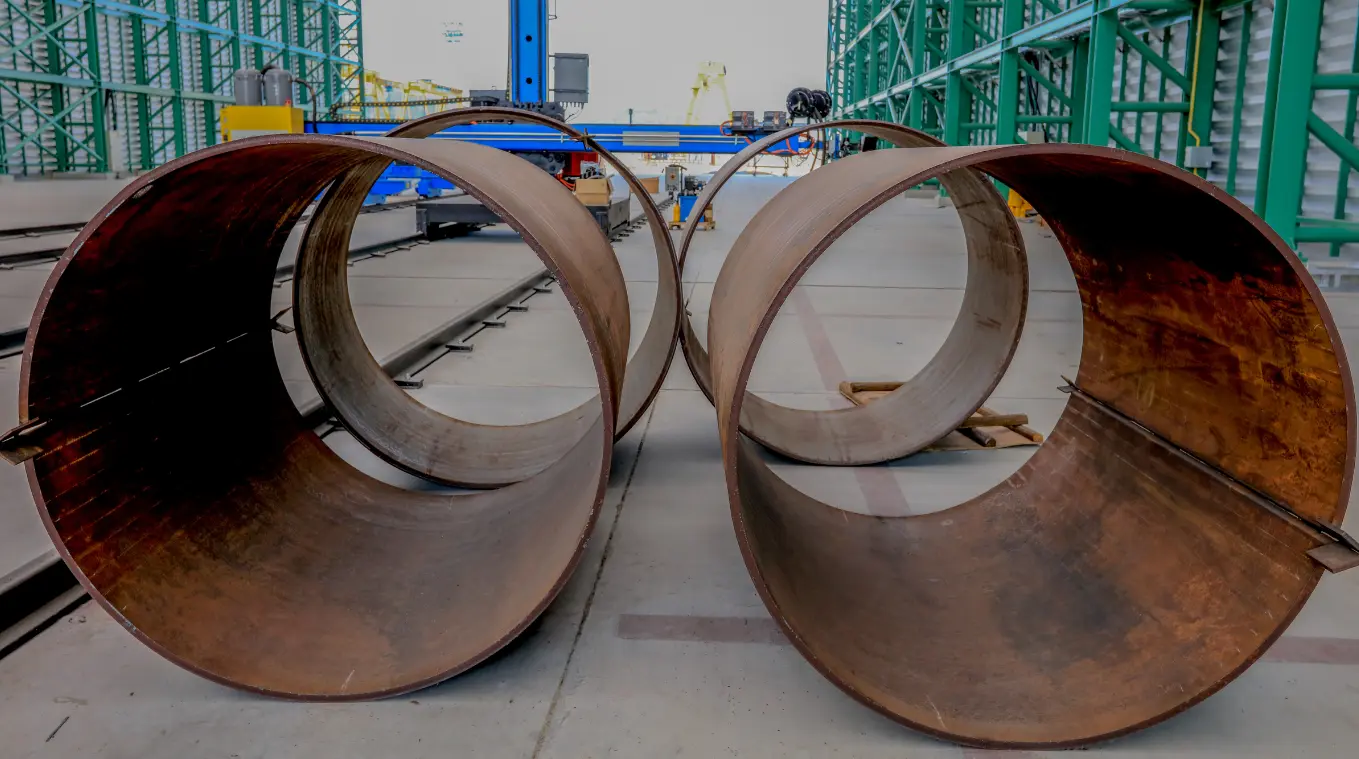

- Pipe rolling
- Bending
- Associate machining facilities
- Tank layout and fit-up
- Non-destructive examinations like Radiography, Ultrasonic Test, Dye Penetration Test, Hydro test etc.
Our fabricators take pride in their work. They are continually learning new methods, tackling challenges and improving their skills.
Aefab Annapurna Engineering is one of the leading Air Receiver Tank Manufacturers in India.
