Compressor Air Receiver Tank Manufacturers
Air Compressor Tank, Air Receiver Tank Manufacturer in India with a manufacturing base in Kolkata. Our air vessels or air compressor tanks are available in horizontal & and vertical options for commercial and industrial applications.
They are designed for extra air storage and made of steel for long-lasting durability.
As a leading Air Receiver Tank Manufacturer and Fabricator, we have a complete facility to design and manufacture a complete range of compressed Air Receivers and compressed air gas storage tanks having a volumetric capacity ranging from 500 Ltrs to 30,000 Ltrs
Known for durability, less maintenance, easy operation and corrosion resistance, our range is in adherence with defined industry standards.
Our range of air receivers is manufactured using carbon steel (IS 2062, IS 2002, SA 516 etc.) and/or stainless steel (SS 304, 304L, SS 316 316L)
They are designed for extra air storage and made of steel for long-lasting durability.
Timely Delivery
Delivery On time, every time through a structured Project Management Approach.
Quality
Quality Product & Process through a well defined and established QAP.
Competitive Price
Our proficiency and track record drive operational efficiency, enabling us to provide the industry's most competitive pricing.
Air Compressor Receiver Tanks Fabrication (Manufacturing)
1.

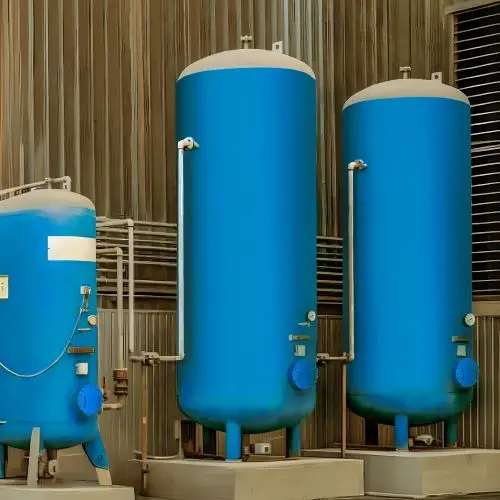

Vertical Air Receiver Tank Manufacturers
A Vertical Air Receiver Storage Tank consists of a cylindrical shell with standard Tori spherical or Ellipsoidal dish on both ends. Vertical tanks are generally used for storing large volumes of air. We provide connections as per your process/design requirements. Working Pressure may vary from 0.1 Bar To 350 Bar.
Horizontal Air Receiver Manufacturer
Horizontal tanks are generally used for storing a smaller volume of air. They are designed to provide a supply buffer to meet short-term demand spikes that can exceed the compressor capacity. They also serve to dampen reciprocating compressor pulsations, separate out particles and liquids, and make the compressed air system easier to control. As a leading Air Receiver Tank Manufacturer in India, we recommend installing a larger receiver tank to meet occasional peak demands and can even allow for the use of a smaller compressor.
Specifications - Air Receiver Tanks
Designed, engineered and manufactured to individual application specifications
Standard Design Pressure 140 Psig (9.5kg/cm2g), Hydro Test Pressure 210 Psig (15.0kg/cm2g). However, High Pressure Air Receivers can be customised.
Capacity: 500 L to 30000 L (you get even beyond this standard range as per your process requirement)
Code of Construction: IS 2825, ASME SEC VIII DIV. I or equivalents
Material of Construction: IS 2062, IS 2002, SA 515/516 grades, SS 304, 304L
The air receivers are generally complete with one Pressure Gauge, One Safety Valve and one Manual Drain Cock, when specified.
Air Receiver Tank Features
- Durability, long lasting and leak proof
- Excellent finish. Quality tested. Adheres to IS 2825, ASME and other standards with special attention Arc Welding (SMAW) procedures
- Precisely engineered, easy operation
- Easy to clean
- Competitive pricing
- Designed with corrosion resistance. Double coated painting.
- All Compressed air tanks are stage wise inspected as per relevant code requirement. Can be offered with Independent Third Party Inspection (TPI) by reputed agencies like Lloyds, DNV, BV, TUV etc.
- The small capacity air receivers can be supplied with or without necessary fittings and accessories like inlets/ outlet nozzles per ANSI – B 16.5, Pr. Gauges. Safety Valves and Auto / Manual Drain Cocks. Etc.
- For each tank, we Provide QC Dossier (Hydro test Report ,Drawing, Material Test Report, Internal Inspection Report and Warranty Documents)
Air Receivers - Applications
As one of the leading Air Receiver Tank Manufacturers in India, our designed and manufactured air receivers are used for
Process applications:
- Utility Air Receivers
- Starter Air Receivers for Engine Room
Industrial applications:
- Chemical industry, process plants
- Textile
- Pharmaceutical industry
- Fertilizer, pesticide industry
- Food Processing Industry, Brewery
- O&G: Refinery, petrochemical & natural gas processing industry
- Paint, Dyes, Rubber
- Packaging
All Custom | Built To Specification
Our Related Products
Let's discuss
Have a Questions? Drop your enquiry Reach out to Us Have a Questions? Drop your enquiry Reach out to Us
Ample space for your big projects!
15,000+ sq ft area
7,000 sq ft covered and floored shed
8,000 sq ft open area
Gated compound with boundary wall
24-hour security and surveillance
Manufacturing unit
- 2, Rabindranath Tagore Road, Dakshineswar Kolkata 700076, West Bengal, India
- 400 m from the nearest metro and railway station
- 7 km from the Kolkata Airport
Reach out to Us
If you have anything to talk about/enquire/need support, let us know. We will go through your requests and respond within 2 business days.
Speak to us or drop us a WhatsApp message
Brands who have trusted us over the years
Explore to our Blog
Aefab – QUICK FACTS
Some more answers to your questions – FAQ
Why do you need an air Compressed Air Receiver?
A compressed air receiver tank receives and stores compressed air after it exits the air compressor.
This gives you a reserve of compressed air that you can draw on without running your air compressor.
The main purpose of this is to act as temporary storage to accommodate the peaks of demand from your system and to optimize the running efficiency of your plant.
Aefab is one of the leading Air Receiver Tank Manufactures in India.
As an Air Receiver Tank Manufacturer, our air tanks play a vital role in every compressed air system.
Air receivers are used to store the compressed air and maintain the air pressure as per the application of the process area, it also creates a buffer and storage between the compressor and consumption systems.
Annapurna Engineering Enterprise – AEFab is a leading manufacturer and fabricator of stainless steel tanks, stainless steel vessels, shell and tube heat exchangers, agitator mixers, industrial chemical reactors, vertical and horizontal pressure vessels, bridge girders and steel bridge bearings.
What pressure should my air receiver be and is it important?
Higher pressure in your air receiver would mean more air for your process. Now the question is how much pressure should we plan for?
Actually, the pressure of your tank should be related to the output pressure of your compressor.
Most standard fixed speed and variable speed drive compressors can deliver compressed air at up to 175 PSIG (12bar), however, the majority of industrial facilities operate between 100-125 PSIG (7-8 bar). Depending on your facility’s needs, the air receiver’s maximum pressure should be sized accordingly.
For example, if your fixed speed compressor is rated to deliver a maximum of 125 psig (8 bar), the air receiver should be rated at a minimum of 150 psig (10 bar).
Most variable speed drive (VSD) air compressors are rated up to 175 psig (12bar), therefore, a 200 (14 bar) psig air receiver would be more suitable for this type of compressed air system.
Each air receiver should be equipped with a pressure relief valve, which is designed to release pressure from the tank in case the tank reaches its maximum allowable pressure inside the vessel.
It is important to remember that higher pressure does not equal more flow (CFM or l/s). It is very important to understand minimum and maximum pressure settings for the machines that utilize compressed air and if possible use pressure regulators out of the air receiver and or at the point of use.
A good rule of thumb to remember is that each 2 psig is equal to 1% of energy being used (1 bar is equal to 7% of energy), which means that we should keep our system pressure according to the facility’s needs, in turn resulting in further energy savings.
Aefab is a leading Air Receiver Tank Manufacturer in India.
A Solution Provider
As a leading Air Receiver Tank Manufacturer in India with a manufacturing base in Kolkata, we provide a solution that is just right for you.
Share your comprehensive requirements when thinking through the options that are important to you or required for your application.
We manufacture different kinds of air compressor tanks, Air compressor storage tanks, Air compressor receiver tanks, Compressed Air Receiver Tank, Air vessel tanks, Air Reservoir Tank, stainless steel air receivers, stainless steel air receiver tank, air receiver tank, air receiver vessel, Compressor air receiver tank, Air vessel, Vertical air receiver, Horizontal air receiver and many related items.
Experienced Fabricator
Aefab Annapurna Engineering production personnel are accomplished craftsmen and experienced fabricators. Their abilities include skills such as:
- Operation of hand-held welding and grinding equipment
- The utilisation of a variety of measurement and testing devices
- Availability of Equipment such as
- Shear and brake press
- Welding – SMAW, MIG and TIG
- Grinders and Polishers
- Plasma cutting
- Pipe rolling
- Bending
- Associate machining facilities
- Tank layout and fit-up
- Non-destructive examinations like Radiography, Ultrasonic Test, Dye Penetration Test, Hydro test etc.
Our fabricators take pride in their work. They are continually learning new methods, tackling challenges and improving their skills.
Aefab Annapurna Engineering is one of the leading Air Receiver Tank Manufacturers in India.
